Teledyne LeCroy T3LCR1100: High-Precision LCR Meter for Accurate Component Analysis

Features and Specifications: Teledyne LeCroy T3LCR1100 LCR Meter, 10Hz – 100 KHz High Precision, T3LCR1000 Series

Product Overview:

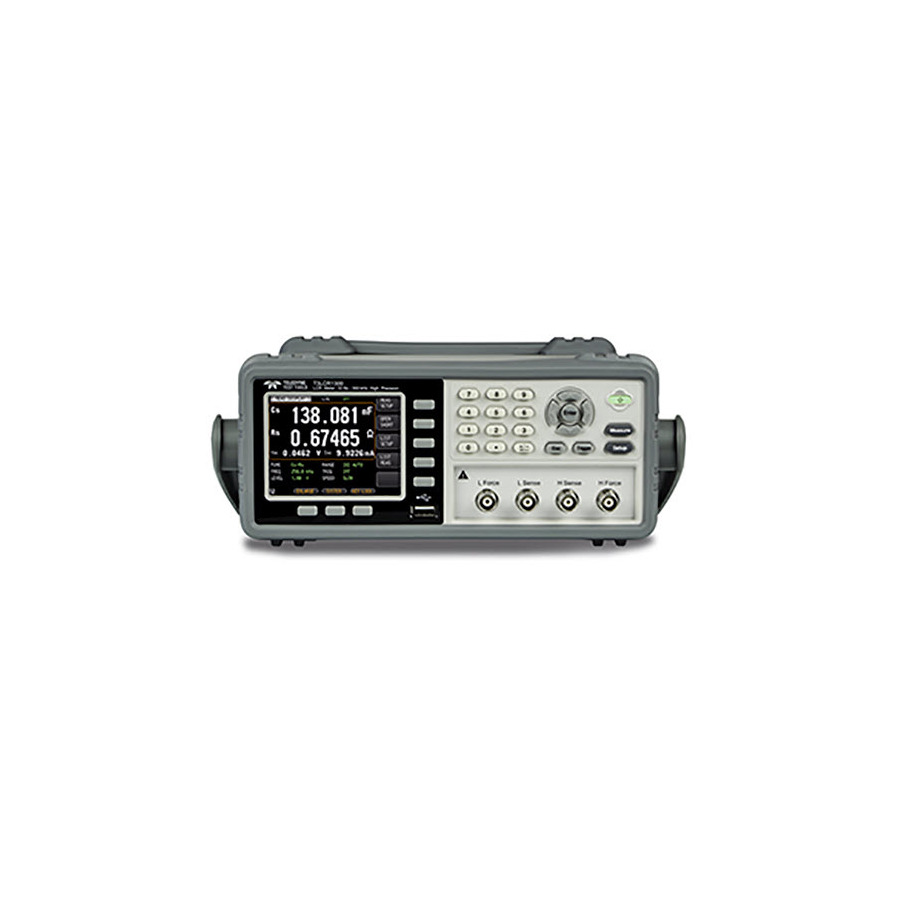

The Teledyne LeCroy T3LCR1100 LCR Meter is a high-precision instrument designed for accurate and reliable measurement of inductance, capacitance, and resistance (LCR) components. With a frequency range of 10Hz to 100KHz, it offers exceptional versatility for a wide range of applications.

Features:

High accuracy: ±0.05% basic accuracy for L, C, and R measurements
Wide frequency range: 10Hz to 100KHz
Multiple measurement modes: L, C, R, D, Q, ESR, and Z
High-resolution display: 4.3-inch color LCD with 480 x 272 resolution
USB and RS-232 interfaces for data transfer and remote control
Compact and portable design

Specifications:

Inductance (L):
Range: 0.1μH to 100H
Accuracy: ±0.05%
Capacitance (C):
Range: 0.1pF to 100mF
Accuracy: ±0.05%
Resistance (R):
Range: 0.1Ω to 100MΩ
Accuracy: ±0.05%
Frequency:
Range: 10Hz to 100KHz
Display:
4.3-inch color LCD
Resolution: 480 x 272

What’s in the Box:

T3LCR1100 LCR Meter
Test leads
Calibration certificate
User manual

Benefits:

Accurate and reliable measurements: Ensures precise and consistent results for component testing and analysis.
Versatile frequency range: Accommodates a wide range of applications, from low-frequency to high-frequency components.
Multiple measurement modes: Provides comprehensive analysis capabilities for various component types.
High-resolution display: Offers clear and easy-to-read results.
Compact and portable: Facilitates convenient use in various settings.

Component characterization and validation
Quality control and inspection
Research and development
* Production testing
