Tektronix TDP4000: 4 GHz Differential Probe for Precision Measurements

Features and Specifications: Tektronix TDP4000 Differential Probe, 4 GHz, 5X, 0.3 pF, 15V, 100 kohm, TekVPI Interface, TDP Series

Product Overview:

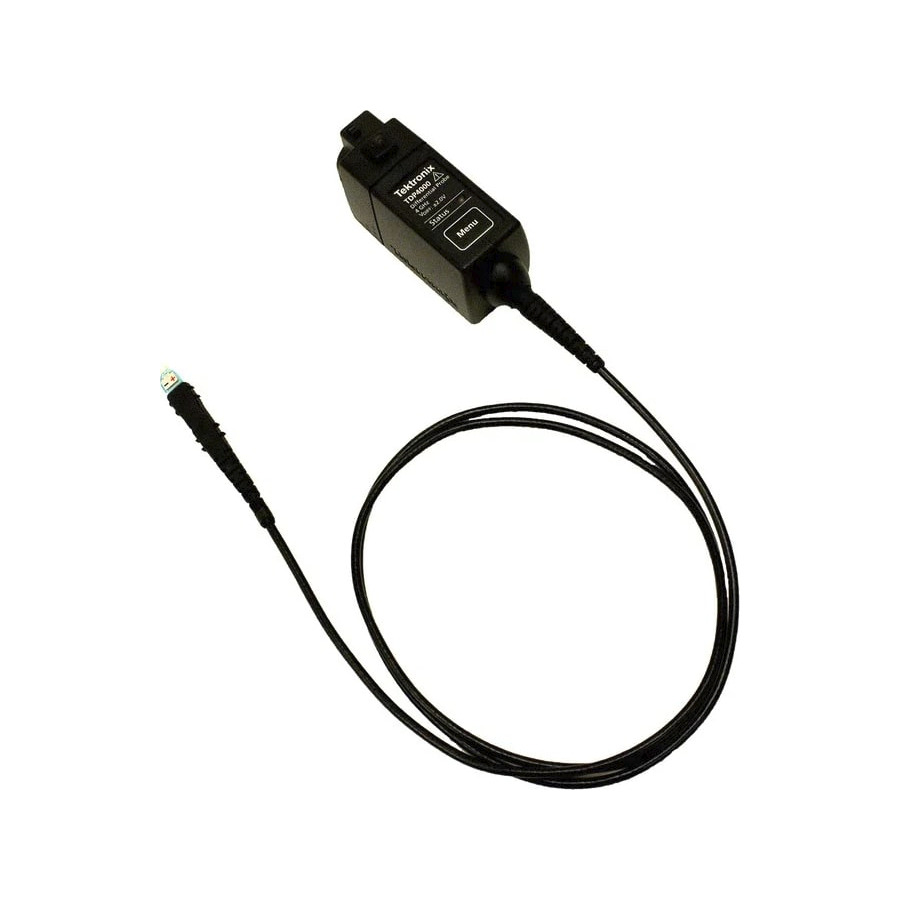

The Tektronix TDP4000 Differential Probe is a high-performance probe designed for use with oscilloscopes. It offers a wide bandwidth of 4 GHz, a high input impedance of 100 kohm, and a low input capacitance of 0.3 pF. This makes it ideal for measuring high-speed signals with minimal loading. The probe also features a TekVPI interface, which allows it to be used with a variety of Tektronix oscilloscopes.

Features:

Bandwidth: 4 GHz
Input impedance: 100 kohm
Input capacitance: 0.3 pF
Maximum input voltage: 15V
TekVPI interface
Auto-ranging
Offset adjustment
Ground reference
Probe tip light

Bandwidth: 4 GHz
Input impedance: 100 kohm
Input capacitance: 0.3 pF
Maximum input voltage: 15V
Rise time: 85 ps
Fall time: 85 ps
Overshoot: <5%
Undershoot: <5%
Common mode rejection ratio: >60 dB
Differential mode rejection ratio: >60 dB
Probe length: 12 inches
Weight: 4 ounces

Tektronix TDP4000 Differential Probe
Probe tip
Ground lead
Carrying case

High bandwidth for measuring high-speed signals
High input impedance for minimal loading
Low input capacitance for accurate measurements
TekVPI interface for easy connection to Tektronix oscilloscopes
Auto-ranging for quick and easy setup
Offset adjustment for precise measurements
Ground reference for accurate grounding
* Probe tip light for easy visibility in low-light conditions

Value:

The Tektronix TDP4000 Differential Probe is a valuable tool for engineers and technicians who need to measure high-speed signals with minimal loading. It offers a wide range of features and benefits, making it an ideal choice for a variety of applications.
