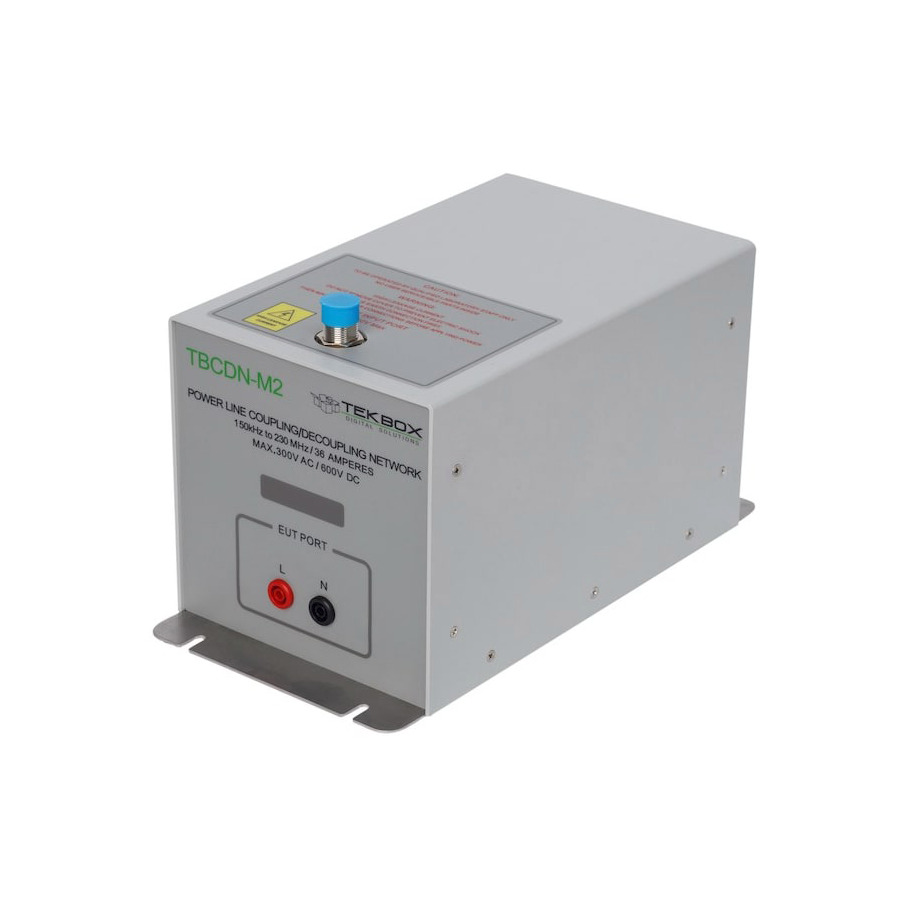

TekBox TBCDN-M2: High-Performance Coupling Decoupling Network for Enhanced Signal Integrity

Features and Specifications: TekBox TBCDN-M2 Coupling Decoupling Network M2

Product Overview:

The TekBox TBCDN-M2 is a high-performance Coupling Decoupling Network (CDN) designed to enhance the accuracy and reliability of conducted emissions testing. It provides a robust and efficient solution for coupling and decoupling signals in the frequency range of 150 kHz to 230 MHz.

Features:

Wide Frequency Range: Covers the critical frequency range for conducted emissions testing, ensuring accurate measurements.
High Current Capacity: Supports currents up to 36 A, accommodating a wide range of test scenarios.
Low Insertion Loss: Minimizes signal attenuation, preserving the integrity of test results.
High Isolation: Effectively isolates the test device from the measurement equipment, reducing noise and improving accuracy.
Compact and Rugged Design: Facilitates easy integration into test setups and withstands demanding environments.

Enhanced Measurement Accuracy: Ensures reliable and repeatable conducted emissions measurements.
Improved Test Efficiency: Reduces setup time and simplifies testing procedures.
Increased Confidence in Results: Provides a solid foundation for accurate and defensible test data.
Compliance with Standards: Meets the requirements of international standards for conducted emissions testing.

Improving the quality and reliability of conducted emissions testing.
Saving time and resources by streamlining test setups.
Ensuring compliance with industry standards.
* Providing a cost-effective solution for accurate and efficient testing.
