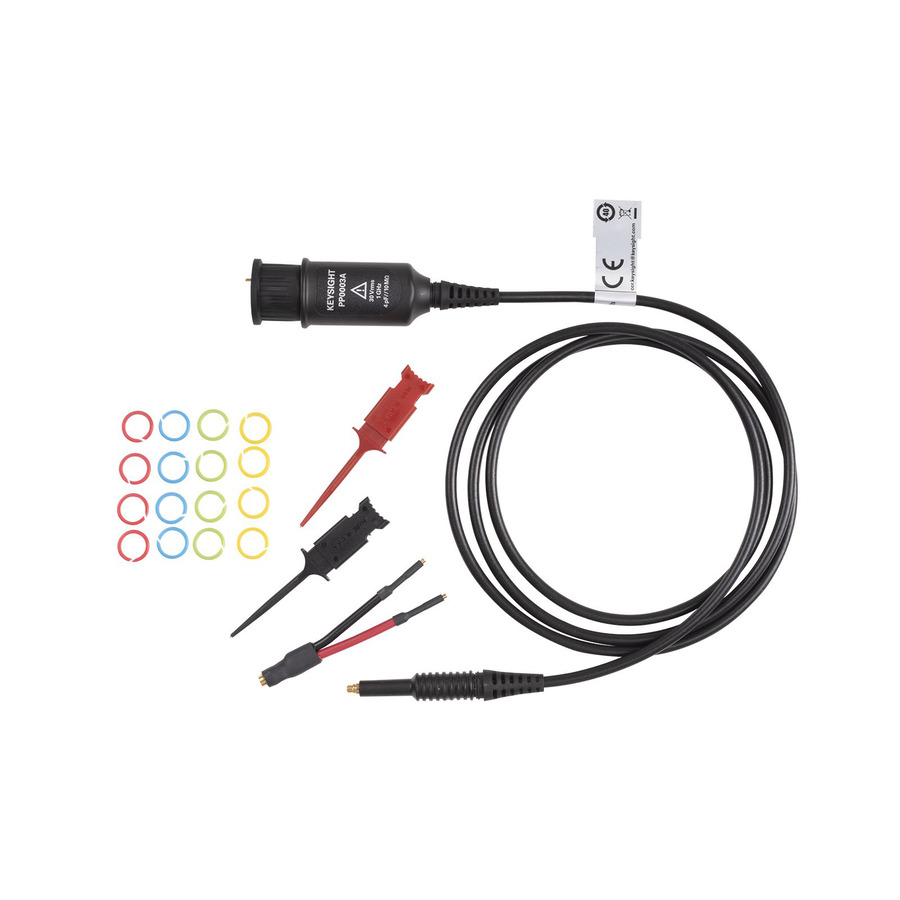

Keysight Hi-Z Series Passive Probe: 1 GHz, 4 pF, 30 V, CAT2
Roll over image to zoom in
$1,058.00
Keysight Hi-Z Series PP0003A/PP0004 Passive Probe/Adapter: 1 GHz bandwidth, 4 pF capacitance, 30 V peak input, CAT II safety rating, ideal for high-impedance measurements.
Features and Specifications
Keysight PP0003A/PP0004 Passive Probe / Adapter, 1 GHz, 4 pF, 30 V, CAT2, Hi-Z Series
Features:
Bandwidth: 1 GHz
Input capacitance: 4 pF
Input resistance: 10 MΩ
Maximum input voltage: 30 V
CAT II safety rating
Hi-Z input impedance
BNC connector
Ground lead included
Specifications:
Frequency range: DC to 1 GHz
Input impedance: 10 MΩ ±2% || 4 pF ±0.5 pF
Input capacitance: 4 pF ±0.5 pF
Maximum input voltage: 30 Vpk
Safety rating: CAT II
Operating temperature: 0°C to 55°C
Storage temperature: -40°C to 70°C
Dimensions: 120 mm x 15 mm x 15 mm
Weight: 50 g
Product Overview
The Keysight PP0003A/PP0004 Passive Probe / Adapter is a high-quality probe designed for use with oscilloscopes and other test equipment. It features a wide bandwidth of 1 GHz, a low input capacitance of 4 pF, and a high input resistance of 10 MΩ. This makes it ideal for use in a variety of applications, including high-speed digital design, analog circuit troubleshooting, and power electronics testing.
The probe is also CAT II safety rated, which means it can be used to measure voltages up to 30 V in circuits that are connected to the mains supply. This makes it a safe and reliable choice for use in a variety of environments.
What’s in the Box
Keysight PP0003A/PP0004 Passive Probe / Adapter
Ground lead
User manual
Benefits
High bandwidth of 1 GHz for accurate measurements of high-speed signals
Low input capacitance of 4 pF for minimal loading of the circuit under test
High input resistance of 10 MΩ for accurate voltage measurements
CAT II safety rating for safe use in circuits connected to the mains supply
BNC connector for easy connection to oscilloscopes and other test equipment
Ground lead included for convenient grounding
Value
The Keysight PP0003A/PP0004 Passive Probe / Adapter is a high-quality probe that offers excellent performance and reliability. It is ideal for use in a variety of applications, including high-speed digital design, analog circuit troubleshooting, and power electronics testing. The probe is also CAT II safety rated, making it a safe and reliable choice for use in a variety of environments.
Additional information
| Brand | Keysight |
|---|
Returns Policy
We accept returns within 30 days of delivery. To qualify, items must be unused, in their original condition, and returned with all original packaging and accessories.
Once we receive and inspect the returned item, we will process your refund within 7 business days. Refunds will be issued to the original payment method.
Please note: Shipping costs are non-refundable unless the return is due to a defective or incorrect item.
Ask a Question

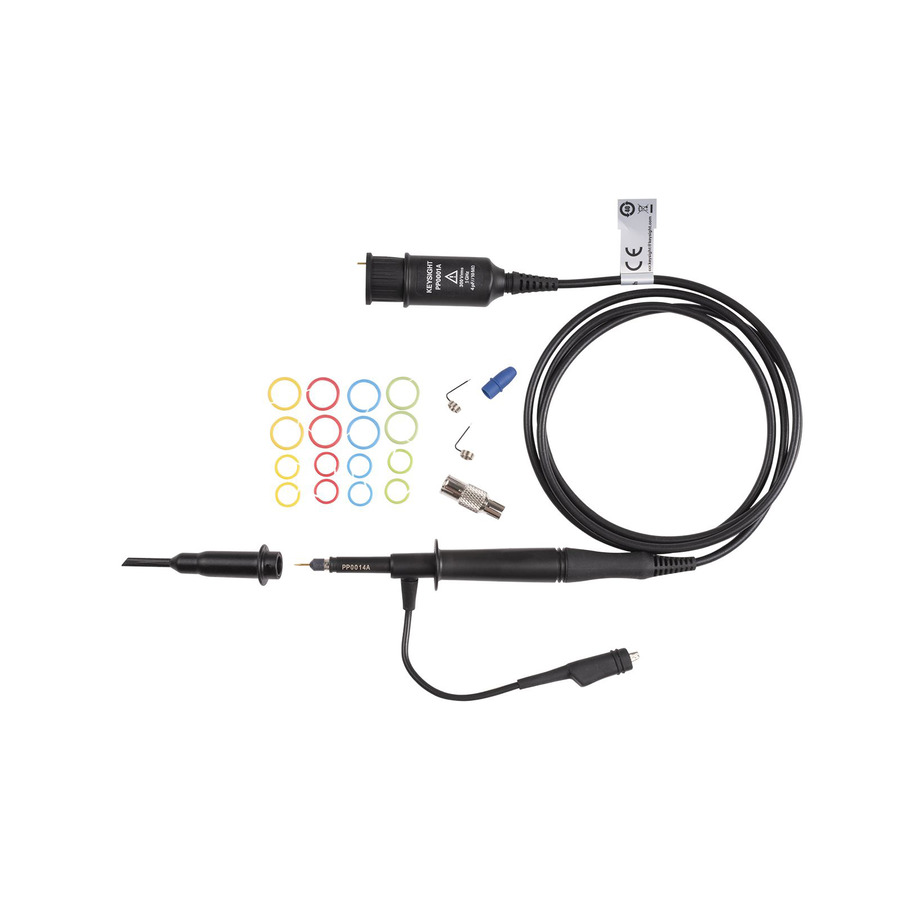

Keysight Hi-Z Series Passive Probe: 1 GHz, 4 pF, 300 V, CAT2
Roll over image to zoom in
$1,058.00
Keysight Hi-Z Series PP0001A/PP0004 Passive Probe/Adapter: 1 GHz bandwidth, 4 pF capacitance, 300 V CAT II rating, ideal for high-impedance measurements.
Features and Specifications
Keysight PP0001A/PP0004 Passive Probe / Adapter, 1 GHz, 4 pF, 300 V, CAT2, Hi-Z Series
Features:
Bandwidth: 1 GHz
Input capacitance: 4 pF
Input resistance: 10 MΩ
Maximum input voltage: 300 V CAT II
Compensation range: 10 pF to 30 pF
Ground lead length: 1.5 m (5 ft)
Probe tip diameter: 0.5 mm (0.02 in)
Probe tip length: 10 mm (0.4 in)
Probe weight: 100 g (3.5 oz)
Specifications:
Accuracy: ±2%
Linearity: ±0.5%
Temperature range: 0°C to 50°C (32°F to 122°F)
Humidity range: 0% to 90% RH
Altitude range: 0 to 2000 m (0 to 6562 ft)
Product Overview
The Keysight PP0001A/PP0004 Passive Probe / Adapter is a high-quality probe designed for use with oscilloscopes and other test equipment. It features a wide bandwidth of 1 GHz, a low input capacitance of 4 pF, and a high input resistance of 10 MΩ. This makes it ideal for measuring high-frequency signals with minimal loading. The probe also has a maximum input voltage of 300 V CAT II, making it suitable for use in a variety of applications.
What’s in the Box
Keysight PP0001A/PP0004 Passive Probe / Adapter
Ground lead
Probe tip
User manual
Benefits
High bandwidth for measuring high-frequency signals
Low input capacitance for minimal loading
High input resistance for accurate measurements
Maximum input voltage of 300 V CAT II for use in a variety of applications
* Durable construction for long-lasting use
Value
The Keysight PP0001A/PP0004 Passive Probe / Adapter is a valuable tool for any engineer or technician who needs to measure high-frequency signals. It is accurate, reliable, and durable, and it comes with a one-year warranty.
