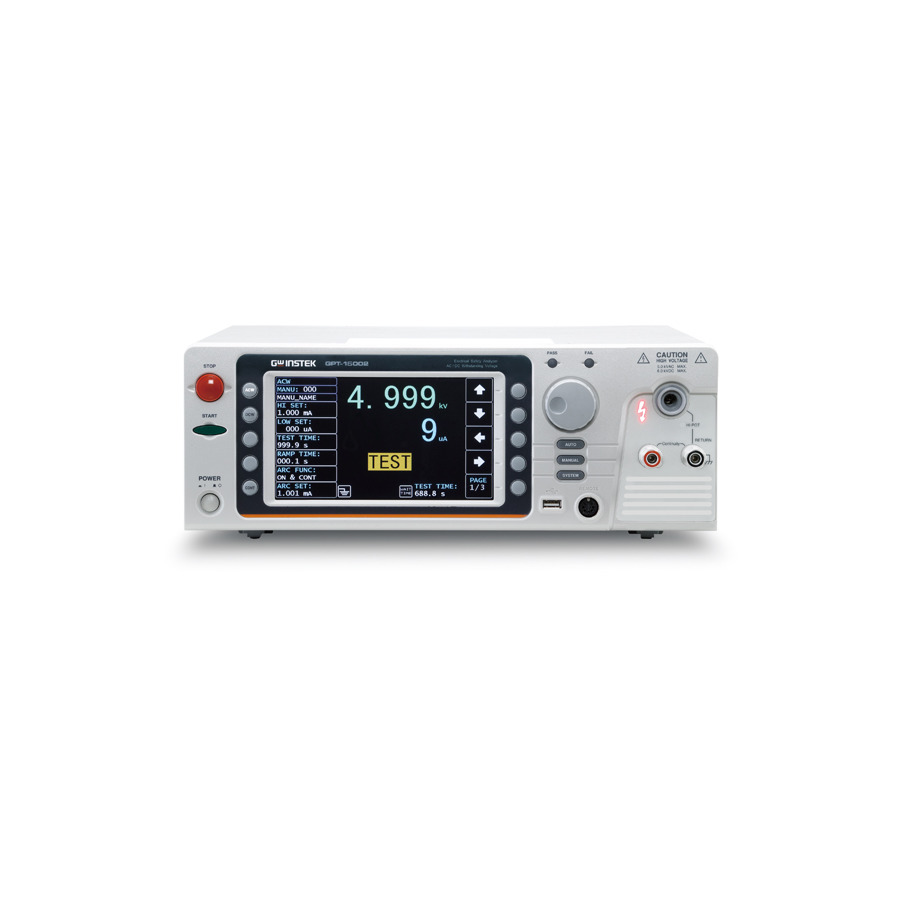

Instek GPT-15002: Advanced Hipot Tester and Safety Analyzer with AC/DC/CG Functions and 7″ TFT LCD

Features and Specifications: Instek GPT-15002 Hipot Tester and Safety Analyzer

Product Overview:

The Instek GPT-15002 is a versatile and advanced Hipot Tester and Safety Analyzer designed for comprehensive electrical safety testing. With its AC/DC/CG functions and intuitive 7″ TFT LCD, it empowers users to conduct a wide range of tests efficiently and accurately.

Features:

AC/DC/CG Functions: Supports AC, DC, and CG (Ground Continuity) testing for various electrical products.
7″ TFT LCD: Provides a clear and user-friendly interface for easy operation and data visualization.
High Voltage Output: Generates up to 15 kV AC and 6 kV DC for high-voltage testing.
Insulation Resistance Measurement: Measures insulation resistance up to 100 GΩ.
Ground Resistance Measurement: Tests ground resistance up to 100 Ω.
Leakage Current Measurement: Measures leakage current up to 20 mA.
Safety Standards Compliance: Meets IEC 61010-1, IEC 61010-2-030, and IEC 60950-1 safety standards.
Data Logging and Storage: Records and stores test results for easy retrieval and analysis.
Remote Control: Supports remote control via USB or Ethernet for automated testing.

Voltage Range: AC: 0-15 kV, DC: 0-6 kV
Current Range: AC: 0-20 mA, DC: 0-20 mA
Insulation Resistance Range: 0-100 GΩ
Ground Resistance Range: 0-100 Ω
Leakage Current Range: 0-20 mA
Display: 7″ TFT LCD
Dimensions: 430 x 360 x 210 mm
Weight: 15 kg

GPT-15002 Hipot Tester and Safety Analyzer
Power cord
Test leads
User manual

Comprehensive Testing: Enables users to perform a wide range of electrical safety tests with a single instrument.
Enhanced Efficiency: Streamlines testing processes with its intuitive interface and automated features.
Accurate Results: Delivers precise and reliable test results for accurate safety assessments.
Safety Compliance: Ensures compliance with industry safety standards, reducing risks and liability.
Data Management: Facilitates data logging and storage for easy documentation and analysis.
* Value for Customers: Provides a cost-effective solution for comprehensive electrical safety testing, enhancing product quality and safety.
