Haldex AC Hydraulic Power System Self-Contained, 5 HP, 230/460V AC, Model# 1400030
Roll over image to zoom in
$1,595.00
Handles a wide variety of industrial applications. All models have 1725 RPM TEFC (totally enclosed, fan-cooled) motors, check valve, adjustable relief valve and 3000 PSI pressure gauge. High-strength cast iron housing. DU® bearings. Filler screen, sight gauge and flexible coupling. Hardened and ground alloy steel gears and shafts. Pressure-balanced pumps provide up to 90% overall efficiency. Ideal for systems using low-viscosity fluids in high temps and high duty cycle applications. Pressure-balanced pump provides high speed positioning and then maximum working pressure as in clamping, crimping and metal-forming machines. Does not include manifold or interface.
Product ManualKey Specs
| Item# | 10593 |
| Brand | Haldex |
| Manufacturer’s Warranty | 1 year Limited Warranty |
| Ship Weight | 132.0 lbs |
| Flow (GPM) | 3.5 |
| Inlet Port (in.) | 9/16-18 SAE |
| Outlet Port (in.) | 9/16-18 SAE |
| Reservoir Capacity | 15 gal. |
| Volts | 230, 460 AC |
| Phase | 3 |
Returns Policy
We accept returns within 30 days of delivery. To qualify, items must be unused, in their original condition, and returned with all original packaging and accessories.
Once we receive and inspect the returned item, we will process your refund within 7 business days. Refunds will be issued to the original payment method.
Please note: Shipping costs are non-refundable unless the return is due to a defective or incorrect item.
Ask a Question

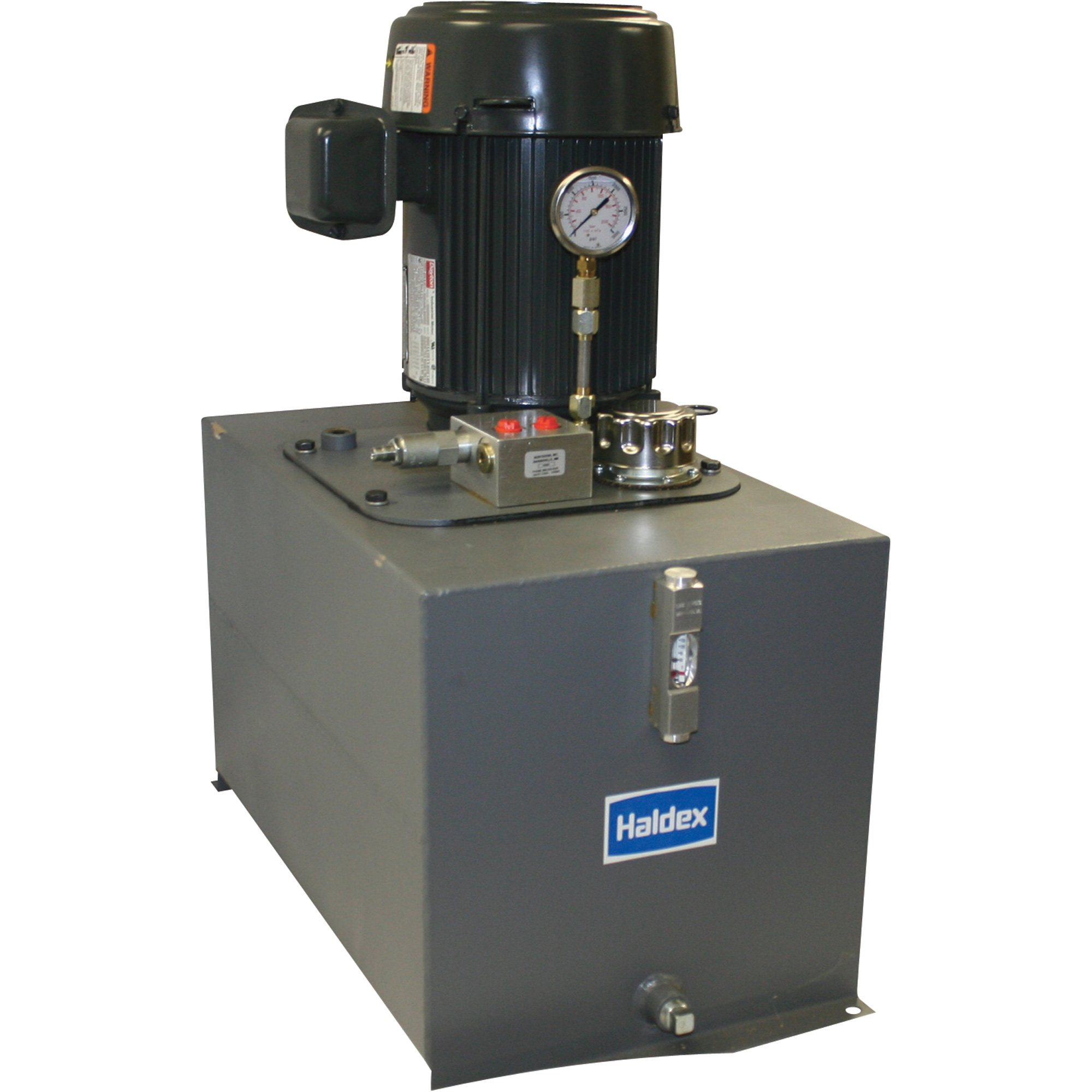

Haldex AC Hydraulic Power System Self-Contained, 5 HP, 230/460V AC, Model# 1400031
Roll over image to zoom in
$1,735.00
Handles a wide variety of industrial applications. All models have 3,450 RPM TEFC (totally enclosed, fan-cooled) motors, check valve, adjustable relief valve and 3,000 PSI pressure gauge. High-strength cast iron housing. Filler screen, sight gauge and flexible coupling. Hardened and ground alloy steel gears and shafts. Pressure-balanced pumps provide up to 90% overall efficiency. Ideal for systems using low viscosity fluids in high temps and high-duty cycle applications. High/low pump provides high speed positioning and then maximum working pressure as in clamping, crimping and metal-forming machines. Does not include manifold or interface.
Product ManualKey Specs
| Item# | 10594 |
| Brand | Haldex |
| Manufacturer’s Warranty | 1 year Limited Warranty |
| Ship Weight | 197.0 lbs |
| Max. RPM | 3,450 |
| Inlet Port (in.) | 7/8-14 SAE |
| Outlet Port (in.) | 7/8-14 SAE |
| Reservoir Capacity | 15 gal. |
| Volts | 230, 460 AC |
| Phase | 3 |
